ARC-12S Platinum 3-in-1 Portable Air Conditioner

Description
Additional information
Features and Specifications
Support
Accessories
Retailers

Product Description

Optimize your space with the Whynter ARC-12S 12,000 BTU (5,000 BTU SACC) Portable Air Conditioner. This sleek platinum unit provides cooling, dehumidifying, and fan functions for spaces up to 400 sq. ft., ensuring reliable comfort. Equipped with an Activated Carbon filter, it guarantees fresh, clean air quality while its compact design makes it ideal for any room. The intuitive controls make operation effortless, allowing you to personalize your climate. Choose Whynter for versatile, portable air conditioning solutions that enhance both functionality and style.

Additional information

ASHRAE BTU	12,000 BTU
SACC BTU	5,000 BTU
Color	Platinum
Coverage Sq. Ft.	400 sq. ft.
Dehumidifying Capacity	91 pints/ day
Exhaust Hose Length	Max. 60"
Window Kit Length	6.5" W x 20" (min)/ 46" (max) L
Fan Speed	3 speed
Filter Type	Carbon air filter and washable pre-filter
Heat Mode	No
Hose System	Single Hose
Louver Type	Fixed with manual side to side
Maximum Power Consumption	1000W/ 9.2A
Noise level (dBA)	<51 low/ <52.5 high
Pump Feature	No
Refrigerant	R-410A
Replacement Filter	Carbon: ARC-CF-12S
Replacement Hose	ARC-EH-TYPE-L
Replacement Window Kit	ARC-WK-SINGN
Storage Bag	Yes
Temperature Range	61°F – 89°F
Upper Gravity Drain Port	Yes
Unit Dimensions	17" W x 15.5" D x 31" H

Features and Specifications

● Platinum color
● 12,000 BTU Cooling
● ECO-FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments

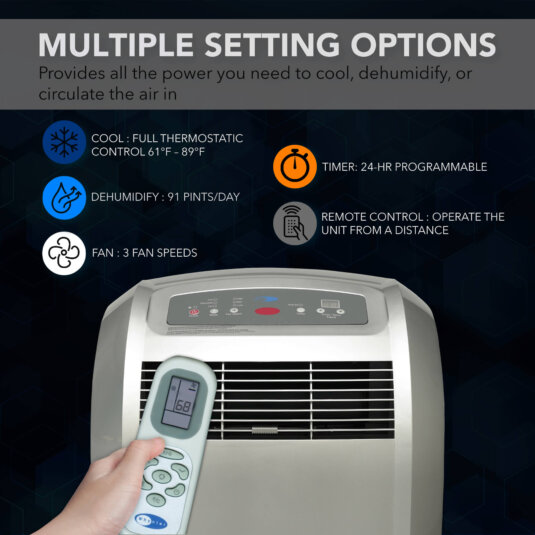

● Three operational modes: Air conditioner, fan or dehumidifier
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 91 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds

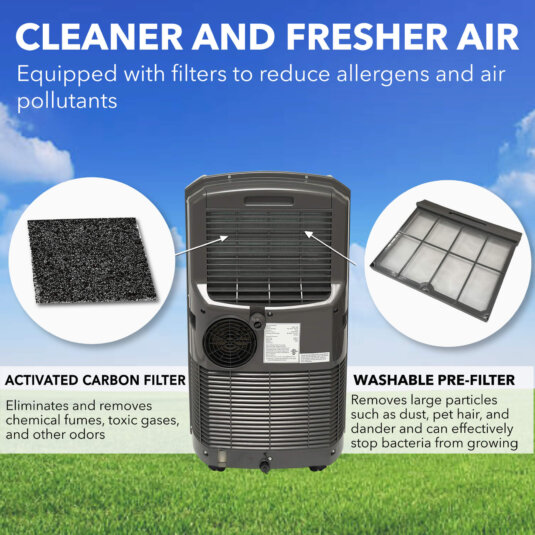

● Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <51 low/ <52.5 high
● Auto restart after power outage
● Storage cover bag with pocket

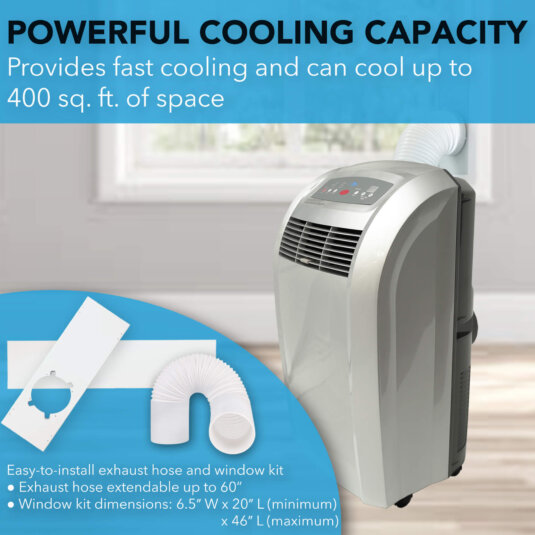

● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-410A
● Air Flow (at high speed): 320 m3/h / 188 CFM
● Maximum power consumption: 1000 W / 9.2 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17″ W x 15.5″ D x 31″ H
● Package dimensions: 20″ W x 19″ D x 35″ H
● Net weight: 63 lbs
● Gross weight: 78 lbs
● UL listed
● UPC 891207001538

*This unit comes with one year warranty and three year warranty on the compressor.

Support

USER MANUAL >>

ENERGY GUIDE >>

Troubleshooting >>

FAQs

Accessories

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com

ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-SINGN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

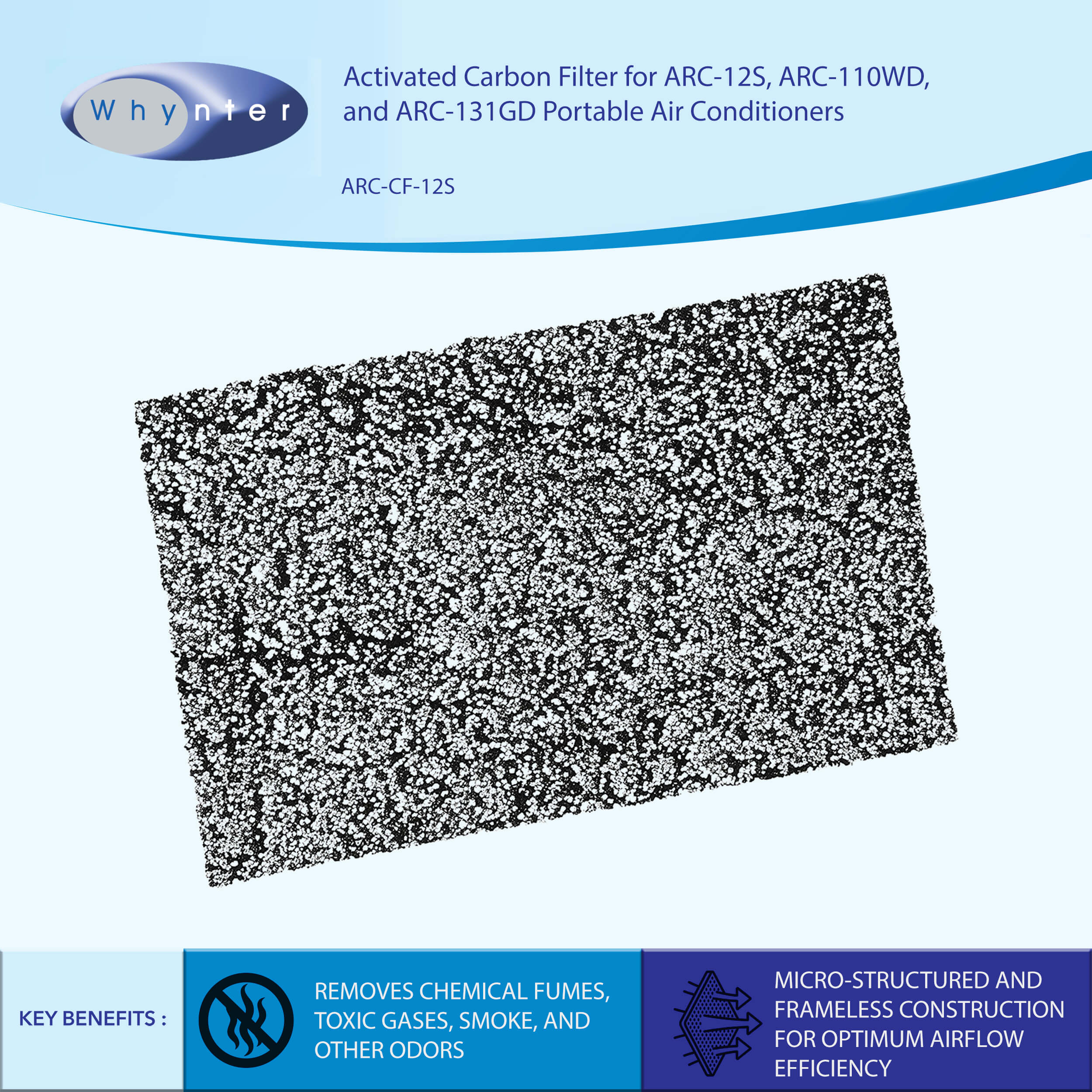

Activated Carbon Filter: ARC-CF-12S
Whynter Activated carbon filter
Available at:
Ambient Stores
Amazon.com

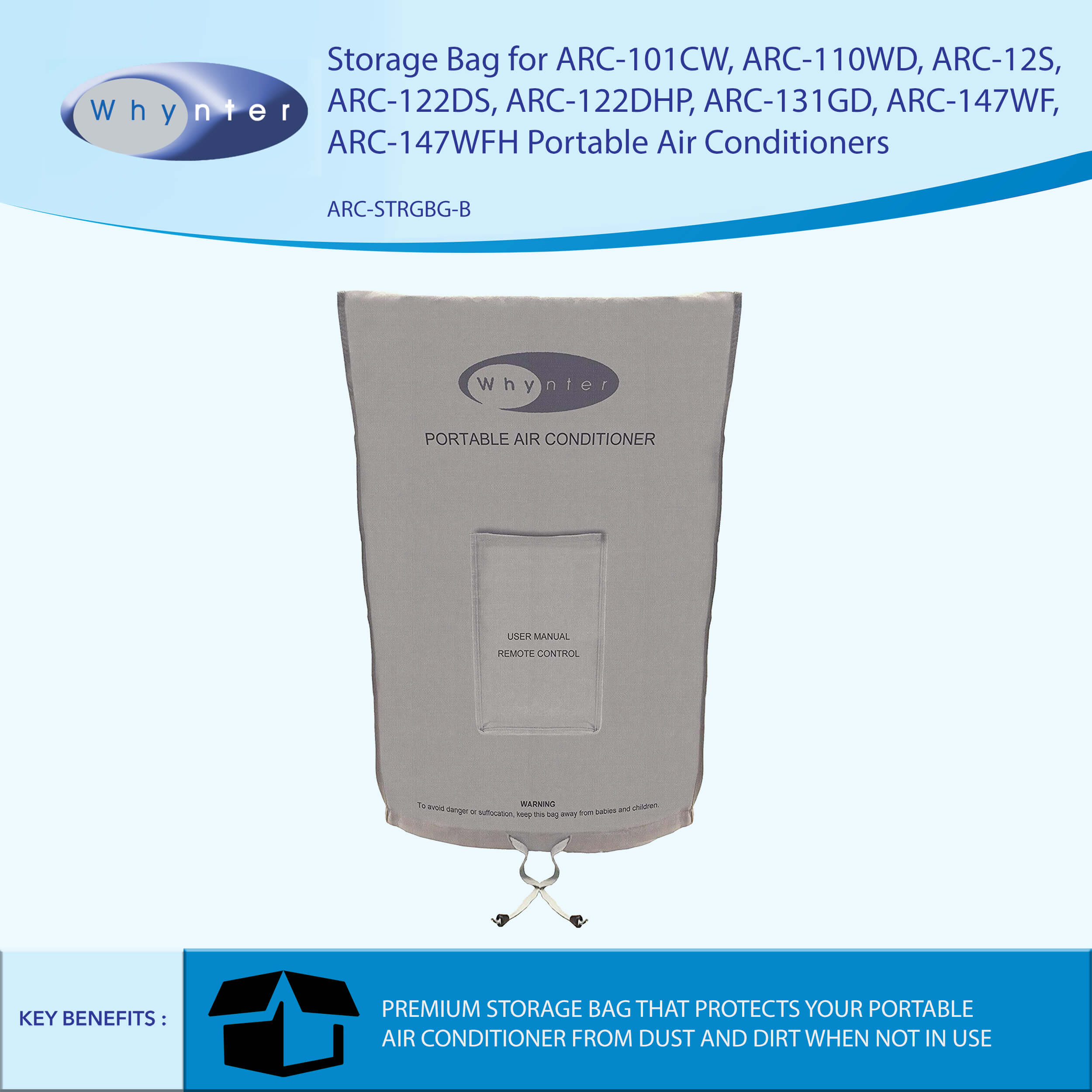

Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores

Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Optional Upper Drain Hose: ARC-TYPN-UDPH
Whynter optional upper drain hose for continuous gravity drainage setup
Available at:
Ambient Stores

Complete Accessories Set: ARC-ACC-SISET-V2
Complete Ventilation Set for ARC-12S
Available at:
Ambient Stores

Retailers

Where to Buy

Reduce Your Energy Consumption While Boosting Your Efficiency

No matter where you live or work and need the power of a 3-in-1 portable air conditioner, Whynter’s ARC-12S is designed to be an effective choice for maximizing your energy efficiency. This 3-in-1 portable air conditioner actively considers the environment in each aspect so you reduce energy consumption with this efficient choice for cooling power. CFC-free R-410A refrigerant combines with lead-free RoHS-compliant components for an environmentally conscious material construction. Plus, the auto drain technology mechanism recycles moisture collected during the cooling process so you use and maintain cool air with less energy consumption than a regular unit. There is also an LCDI (Leakage-Current Detection and Interruption) plug.

In every design aspect, the ARC-12S combines efficiency with eco-friendly considerations. You can cool up to a 400 sq. ft. space with this portable air conditioner with a carbon filter design. Optimum performance may be influenced by humidity levels and ambient temperatures.

Easy to Move and Enjoy

Our portable air conditioner with a carbon filter is designed to be easy to move and enjoy. The extendable exhaust house reaches up to 60”, and an upgraded plastic window kit is included with your purchase. You can set up this 3-in-1 portable air conditioner in almost any indoor location; we see our units most commonly used in computer/server rooms, bedrooms, classrooms, and garages/workshops.

While your unit is in storage, you can protect it with the included cover that keeps dust and dirt from collecting on your ARC-12S. Additionally, the pocket in the protective cover can store your exhaust hose, window kit, remote control, and user manual when not in use.
